In the rapidly advancing field of computer vision, image segmentation plays a pivotal role in enabling machines to understand and interpret visual data at a granular level. Whether in autonomous driving, medical imaging, or robotics, segmentation techniques have become essential in making sense of complex scenes.
Two of the most widely used techniques are semantic segmentation and instance segmentation. This article explores how these methods work, their applications, and how they differ.
What is Image Segmentation?
Image segmentation is the process of dividing a digital image into multiple segments or regions to simplify its analysis. The goal is to assign a label to every pixel in the image, such that pixels with the same label share certain visual characteristics. There are two main types of segmentation techniques: semantic segmentation and instance segmentation.
Difference Between Semantic Segmentation and Instance Segmentation
While both techniques involve classifying every pixel in an image, their approaches and use cases differ significantly.
| Semantic Segmentation | Instance Segmentation |
|---|---|
| #1 Detects object categories for every pixel, where all labels are known to the model. Example: In an image with several chairs, all chairs are labeled as "chair" without distinguishing between them. | #1 Identifies object instances for each pixel, differentiating between individual objects of the same class. Example: In the same image, instance segmentation would differentiate between each individual chair, assigning unique labels to each. |
| #2 First, object detection occurs, and then each pixel is labeled with its corresponding class. | #2 Combines object detection and pixel-wise segmentation, differentiating each instance within the same category. |
| #3 Suitable for general object detection where differentiating individual instances is not necessary. | #3 Ideal for applications that require differentiating multiple objects of the same type. |
Applications: Semantic Segmentation vs. Instance Segmentation
Although semantic and instance segmentation are quite similar image segmentation methods, they serve slightly different purposes. Below, we compare the use cases for each type and highlight the areas where both can be applied effectively.
Semantic Segmentation Use Cases
Autonomous Driving

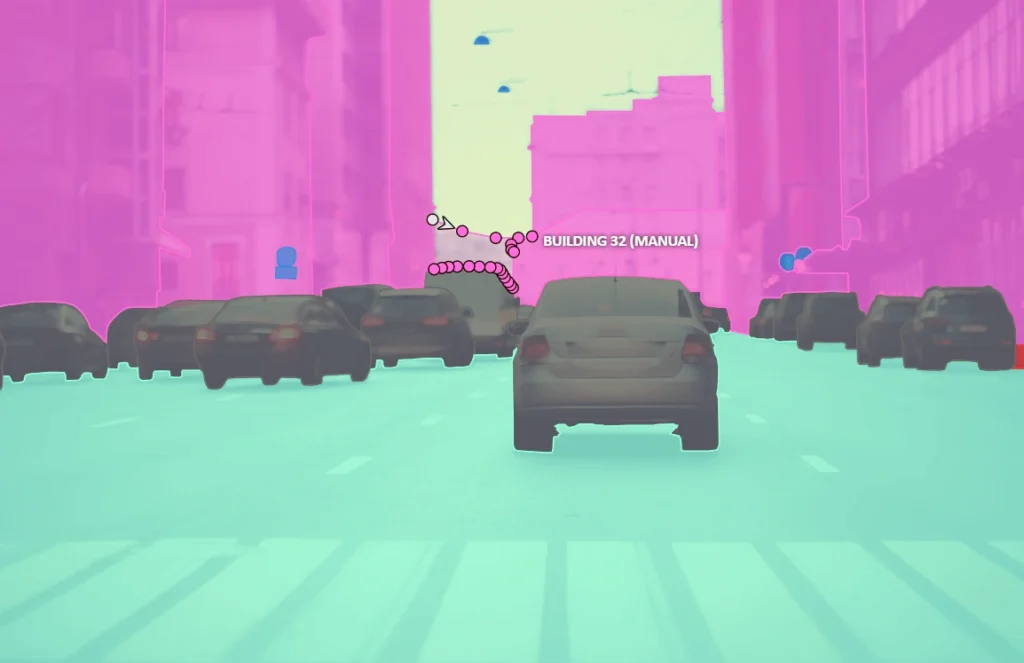

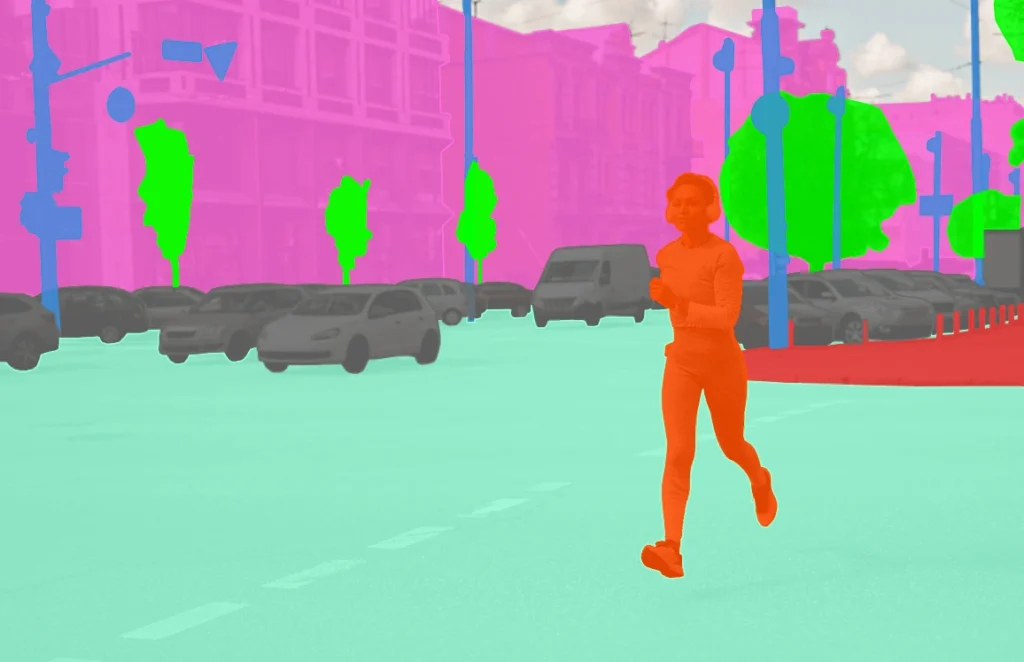

In autonomous driving, semantic segmentation is essential for understanding the entire road environment. Every pixel in the scene is classified to provide detailed information about cars, pedestrians, roads, and obstacles. This pixel-wise segmentation ensures the vehicle can navigate by recognizing critical elements like traffic signals and lanes. The challenge is to maintain performance across varying conditions, including different lighting, weather, and road types, which require a robust and adaptable training dataset.
Medical Imaging
Semantic segmentation plays a critical role in medical diagnostics. For example, in CT scans or MRIs, each pixel can be labeled to highlight different tissues, organs, or abnormal growths like tumors. This provides radiologists with an enhanced view, making it easier to focus on specific areas of interest for further analysis. However, balancing accuracy and computational efficiency is challenging, especially in high-resolution medical images where fine boundary detection is crucial.
Satellite Imagery and Environmental Monitoring
Semantic segmentation is also used extensively in satellite imagery to map large areas. It helps in applications like land cover classification, urban expansion monitoring, or deforestation tracking. Here, the challenge lies in processing vast geographical areas while maintaining precision, particularly when dealing with lower-resolution images that cover large regions.
Instance Segmentation Use Cases
E-commerce and Inventory Management

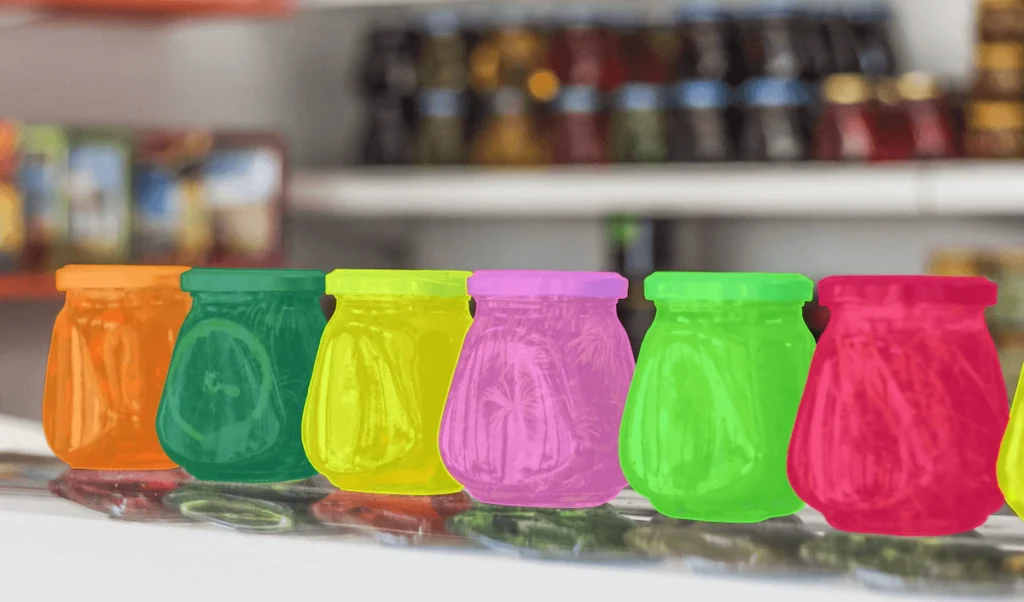

Instance segmentation is particularly valuable in environments like warehouses, where individual products need to be tracked and identified. By segmenting each product separately, instance segmentation ensures accurate inventory monitoring and automated shelf replenishment systems. One key challenge is managing visually similar objects that are placed closely together, which may cause instance misidentification.
Robotics and Object Manipulation
In robotics, instance segmentation enables machines to distinguish and manipulate individual objects in complex and cluttered environments. For instance, on a production line, robots can differentiate between items and perform actions like picking, sorting, or assembling. The challenge arises when objects overlap or are occluded, requiring the model to robustly identify each instance even in such difficult conditions.
Agriculture and Precision Farming
In agriculture, instance segmentation can differentiate between individual plants, fruits, or crops, helping farmers monitor growth and health. This technology is particularly useful in precision farming, where managing crops at the individual level can improve yield estimation and disease detection. However, the variability in plant appearance due to environmental factors adds complexity to consistent and accurate instance segmentation.
Shared Use Cases: Where Both Semantic and Instance Segmentation Excel
Autonomous Driving
While semantic segmentation is vital for understanding the overall driving environment, instance segmentation can complement it by identifying and tracking individual objects, such as specific cars or pedestrians. This combination helps in more precise object detection and tracking, improving decision-making in real-time situations like obstacle avoidance.
Medical Imaging
In medical imaging, while semantic segmentation provides a general understanding by labeling tissues and organs, instance segmentation can be used to identify individual instances of abnormalities, like tumors or lesions, for precise diagnosis. Together, they enhance the level of detail in medical analysis, offering both pixel-level classification and object-level identification.Smart Cities and Surveillance
Both segmentation methods can be applied in smart city initiatives, particularly in urban surveillance. Semantic segmentation can help classify broad areas (e.g., buildings, roads, vehicles), while instance segmentation can isolate and track specific objects or people in real-time for enhanced monitoring and decision-making.
Semantic Segmentation: How It Works

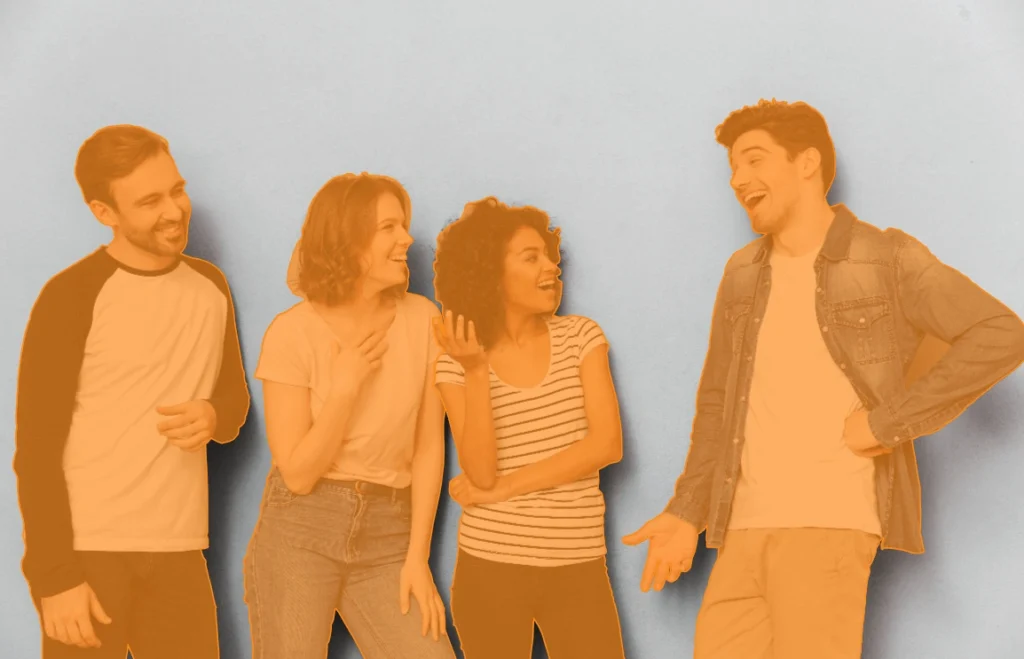

Semantic segmentation involves classifying each pixel in an image as belonging to a specific object class, such as a car, tree, or building. The model performs pixel-wise classification, assigning the same label to all pixels that belong to the same category, without distinguishing between individual instances. This process typically involves:
- Feature Extraction: The image is passed through convolutional neural networks (CNNs) that extract important features, such as edges, textures, and patterns, which help in distinguishing between different object categories.
- Pixel Classification: After features are extracted, each pixel in the image is classified according to the category it belongs to. All pixels that represent the same object type (e.g., all trees) receive the same label.
- Contextual Understanding: The model takes into account the spatial relationships and surrounding pixels to ensure that the labeling makes sense contextually. This helps avoid incorrect labeling of isolated pixels and improves the consistency of segmentation results.
Popular algorithms for semantic segmentation include:
- Fully Convolutional Networks (FCNs): These networks can handle images of various sizes and use upsampling techniques to create full-resolution segmentation maps. They’re one of the earliest and foundational approaches for pixel-wise classification.
- U-Net: Known for its success in the medical field, U-Net has an encoder-decoder structure, where the encoder captures the context and the decoder performs precise localization of pixels. The architecture excels in cases requiring high precision.
- DeepLab: DeepLab improves segmentation results by applying Atrous (dilated) Convolutions, which effectively increases the receptive field, enabling the model to capture a larger context without losing resolution.
Instance Segmentation: How It Works

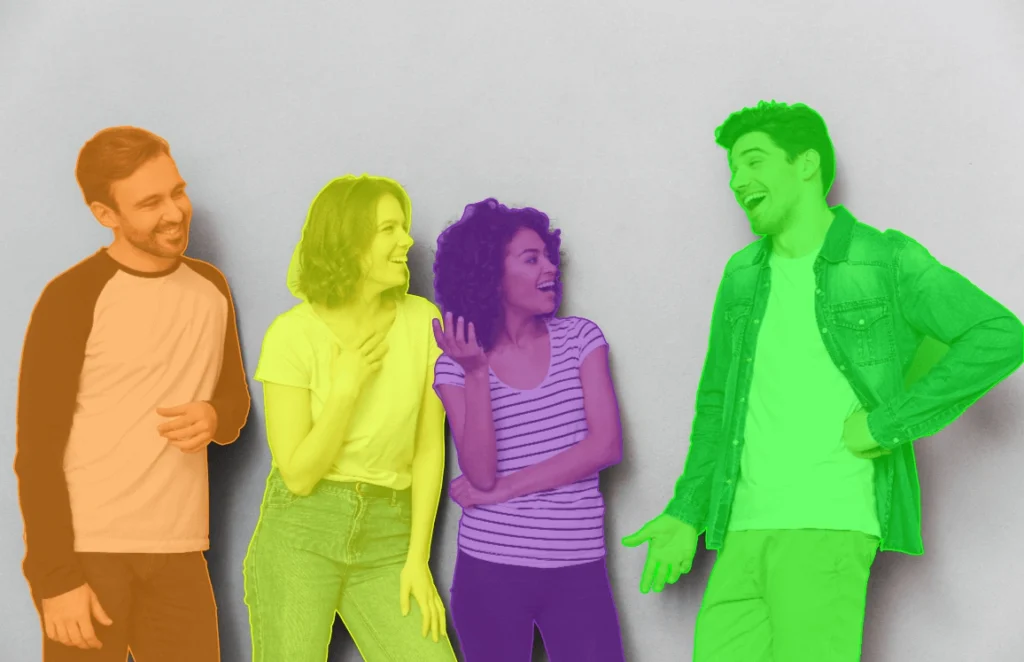

Instance segmentation builds upon semantic segmentation by not only assigning object labels to pixels but also distinguishing between different instances of the same object class. This process involves:
- Feature Extraction: Like semantic segmentation, instance segmentation also begins with feature extraction, where CNNs analyze the image to pull out relevant features that help distinguish between various objects and their instances.
- Object Detection and Localization: The model identifies and draws bounding boxes around each object, marking them as distinct entities. This helps in separating multiple instances of the same class (e.g., different cars in a parking lot).
- Instance-specific Masking: After detecting the objects, the model generates a pixel-wise mask for each instance, differentiating between overlapping or nearby objects that belong to the same category.
Key algorithms used for instance segmentation include:
- Mask R-CNN: A leading method in instance segmentation, Mask R-CNN builds upon object detection models like Faster R-CNN. It not only identifies bounding boxes for objects but also creates a detailed pixel mask for each detected instance, making it highly effective at handling overlapping objects.
- YOLO: A fast, single-stage object detection model adapted for instance segmentation. It predicts bounding boxes and class labels in one pass, and with added mask generation layers, YOLO can identify and segment individual object instances efficiently. Its real-time performance makes it ideal for applications requiring quick and accurate segmentation.
Conclusion
Both semantic segmentation and instance segmentation are powerful tools in the realm of computer vision, each with its own set of strengths and applications. Semantic segmentation provides a broad understanding of object categories in an image, making it useful for tasks like road scene understanding and medical diagnostics. Instance segmentation, on the other hand, adds an additional layer of complexity by differentiating between individual objects, making it invaluable in crowded scenes such as retail environments and agriculture.
As AI continues to evolve, both techniques will play a crucial role in enhancing machine perception, enabling more sophisticated applications across industries. Understanding the differences between these approaches allows businesses to select the right technique for their specific use case, optimizing both performance and accuracy.
